Fred Miller's Stock Patterns
 | |  |
| The following pages contain pictures of patterns that belonged to Fred Miller. These were collected over about a 30 year time span. They are listed with the names that he refered to them by and the approximate dimensions. Some can be inlet for butt plates and wooden patch boxes or the butt can be left square for your own hardware and added length of pull. We will add more of his patterns to this page as time permits. At the present time I have about 200 different patterns to catalog. If you don't see what you need just give us a call or email. |
| Transitional Drop: 3 1/8" LOP: 13 1/2" Length and width of butt: 5 x 2 1/16" |
| Christian Springs / Edward Marshall Drop: 2 5/8" LOP: 13 7/8" Length and width of butt: 5 1/16" x 2 1/8" |
| Fred's Reading Drop: 3 3/8" LOP: 14" Length and width of butt: 5" x 1 15/16" Can be inlet for Reaves # 35 BP |
| Berks Co. Figthorn / Reedy Drop: 3 1/2" LOP: 13 7/8" Length and width of butt: 4 3/4" x 1 3/4" |
| Bonewitz Drop: 3" LOP: 13 1/2" Length and width of butt: 4 3/4" x 1 3/4" Can be inlet for Reaves # 8 buttplate. |
| Reading / Mauger Drop: 3 1/4" LOP: 13" Length and width of butt: 4 3/4" x 1 3/4" |
| MORE TO COME IN THE FUTURE!! |
| Possibly Bucks / Northampton Drop: 3 7/8" LOP: 13 3/4" Length and width of butt: 5" x 2" |
| Early Bucks Co. Drop: 3 5/8" LOP: 13 3/4" Length and width of butt: 5" x 1 7/8" |
| Small Verner Drop: 3 " LOP: 13 3/4" Length and width of butt: 5" x 1 3/4" |
| Fred's Verner Drop: 3" LOP: 14" Length and width of butt: 5 3/16" x 1 7/8" |
| RG's Original Unsigned Lehigh Drop: 3 1/4" LOP: 12 3/4" Length and width of butt: 4 3/16" x 1 3/4" |
| Big Lehigh Drop: 3 1/4" LOP: 13" Length and width of butt: 4 3/4" x 1 15/16" Can be inlet for Reaves # 13 Butt plate |
| Early Reading Similar to RCA # 26 Drop: 2 3/8" LOP: 14 1/2" Length and width of butt: 5 1/4" x 2" |
| Plain Lehigh/ Barn Gun ( Unsigned original) Drop: 3 3/8" LOP: 12 1/2" Length and width of butt: 4 12" x 1 5/8" |
| Kill Deer Drop: 4" LOP: 14 3/4" Length and width of butt: 4 5/8" x 1 3/4" |
| Angstadt ( original, unsigned) Drop: 3 1/2" LOP: 13" Length and width of butt: 4 1/2" x 1 5/8" |
| Ron G's Rupp Pattern Drop: 3 1/2" LOP: 13 1/4" Length and width of butt: 4 1/4" x 1 1/2" |
| Nathan Clause Drop: 3 1/4" LOP: 13 1/8" Length and width of butt: 4 1/2" x 1 5/8" Can be inlet for Reaves # 7 butt plate |
| Allentown Drop: 2 3/4" LOP: 14 1/4" Length and width of butt: 5 3/8" x 2" |
| Possible Rupp/ Unsigned Original Drop: 4 7/8" LOP: 13" Length and width of butt: 4 1/4" x 1 3/8" |
| Peter Neihart / Original Drop: 2 3/8" LOP: 12 7/8 Length and width of butt: 4 3/4" x 1 7/8" |
| Joe Long / Upper Susquehanna Drop: 3 3/4" LOP: 13 1/4" Length and width of butt: 4 1/4" x 1 3/4" |

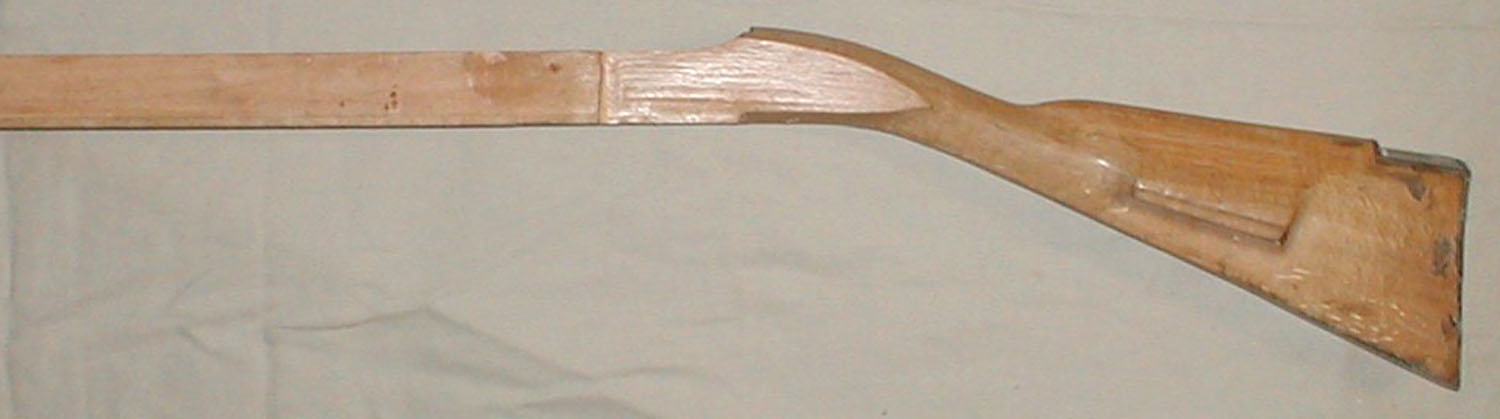

| Small J.P. Beck Drop: 2 5/8" LOP: 13 1/4" Length and width of butt: 4 3/4" x 1 7/8" This pattern can also be inlet for Reaves # 35 butt plate. Our own JP Beck butt plate is also a close fit |
| Large J.P. Beck Drop: 2 5/8" LOP: 13 1/4" Length and width of butt: 2" x 5" This pattern can also be inlet for Reaves # 35 butt plate. Our own JP Beck buttplate is also a close fit. |
| Armstrong Drop: 3 7/8" LOP: 15" Length and width of butt: 5" x 1 1/2" |
| Tennessee # 2 Drop: 3 1/2" LOP: 13" Length and width of butt: 4 3/4" x 1 1/2" |
| Tennessee #1 Drop: 4 1/2" LOP: 14 1/2" Length and width of butt: 4 7/8" 1 5/8" |
| Bedford Drop: 4 3/8" LOP: 14 1/2" Length and width of butt: 4 3/4" x 1 5/8" |
| Possibly Bedford, Original Drop 4 1/8" LOP: 12 3/8" Length and width of butt: 4 3/4" x 1 5/8" |
| Bedford, Original Drop: 4" LOP: 12" Length and width of butt: 4" x 1 1/4" |
| Fred's Bedford Drop: 4" LOP: 13 1/2" Length and width of butt: 4 3/4" x 1 3/4" |
